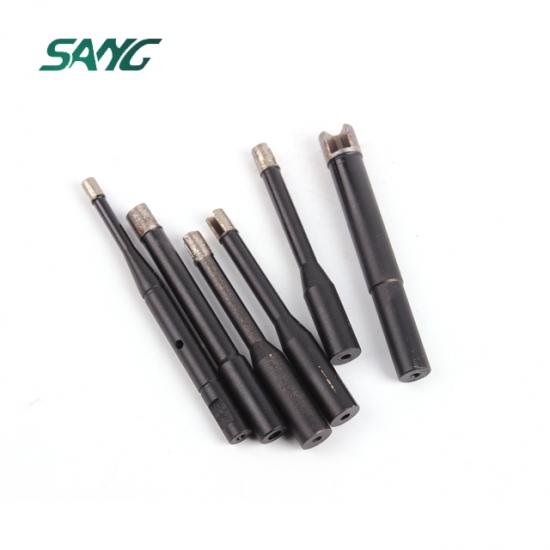

10mm diamond core bit for stone
Universal wet drilling core bits are used for drilling machines. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment. Type of thread: Straight shank; 5/8"-11; M14; UNC 1 1/4"-7; Gas 1/2; 3/4"-6.
WET DRILLING CORE BIT
Type: diamond tools for cnc, Core Drill Bit
Connection: G1/2",5/8"-11, Straight shank etc
Size: D6mm-600mm
Package details: diamond tools for cnc,carton,box
Working length: 50mm-450mm
Segment height: 8/10mm
Brand:
SANGItem No.:
SGCBPayment:
100% TT in advancePrice:
$7.5/pcsPrice range:
100 - 1000/$7.2Product origin:
QuanzhouColor:
BlackShipping port:
XiamenLead Time:
7 days
| For drilling granite, sandstone, basalt, gabbro, marlbe, travertine. | ||||||
| Item No. |
Diameter (mm) |
Working Length (mm) |
Segment Dimension (mm) | |||
| L | W | H | Quantity | |||
| SGCB-T6 | 6 | 30, 50 | column | 10 | 1 | |
| SGCB-T8 | 8 | 60 | column | 10 | 1 | |
| SGCB-T10 | 10 | 60 | column | 10 | 1 | |
| SGCB-T12 | 12 | 60 | column | 10 | 1 | |
| SGCB-T14 | 14 | 60 | column | 10 | 1 | |
| SGCB-T16 | 16 | 60 | column | 10 | 1 | |
| SGCB-T18 | 18 | 60 | column | 10 | 1 | |
| SGCD-R20 | 20 |
75 / 100 / 150 / 200 / 400 |
ring | 3.0 | 10 | 1 |
| SGCD-R26 | 26 | ring | 3.0 | 10 | 1 | |
| SGCD-R32 | 32 | ring | 3.0 | 10 | 1 | |
| SGCD-R36 | 36 | ring | 3.0 | 10 | 1 | |
| SGCD-S42 | 42 | 23/19.7 | 3.0 | 10 | 4 | |
| SGCD-S52 | 52 | 23/20 | 3.5 | 10 | 5 | |
| SGCD-S62 | 62 | 24 | 3.5 | 10 | 5 | |
| SGCD-S82 | 82 | 24 | 4.0 | 10 | 7 | |
| SGCD-S102 | 102 | 24 | 4.0 | 10 | 9 | |
| SGCD-S112 | 112 | 24 | 4.0 | 10 | 9 | |
| SGCD-S132 | 132 | 24 | 4.0 | 10 | 10 | |
| SGCD-S152 | 152 | 24 | 4.0 | 10 | 12 | |
| SGCD-S178 | 178 | 24 | 4.5 | 10 | 13 | |
Universal wet drilling core bits are used for drilling machines. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment. Type of thread: Straight shank; 5/8"-11; M14; UNC 1 1/4"-7; Gas 1/2; 3/4"-6.
SANG diamond drill bit used for drilling reinforced concrete, asphalt, brick and air-cured refractories.
Universal wet drilling core bits are used for drilling machines. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment. Type of thread: Straight shank; 5/8"-11; M14; UNC 1 1/4"-7; Gas 1/2; 3/4"-6.
For drilling reinforced concrete, asphalt, brick and air-cured refractories. Universal wet drilling core bits are used for drilling machines. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment. Type of thread: Straight shank; 5/8"-11; M14; UNC 1 1/4"-7; Gas 1/2; 3/4"-6.

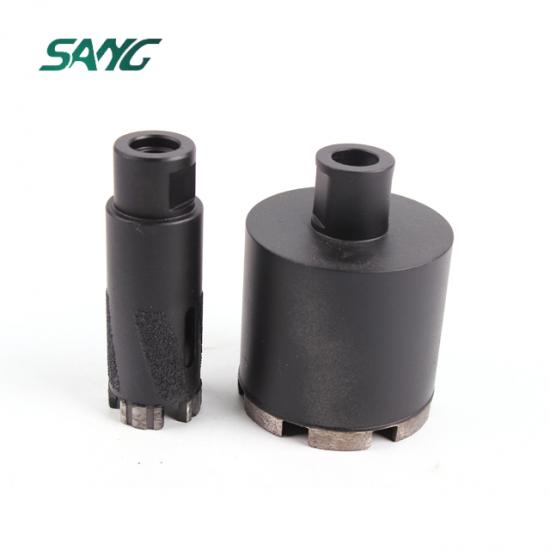

DRY/WET CORE BIT – Aggressive segment turbo rim design for speed and durability – Side diamond protection facilitates any necessary boring – Can be used dry or wet for longer life – Thread M14 5/8”-11 Diameter: 32mm( 1-1/4") 35mm(1-3/8")

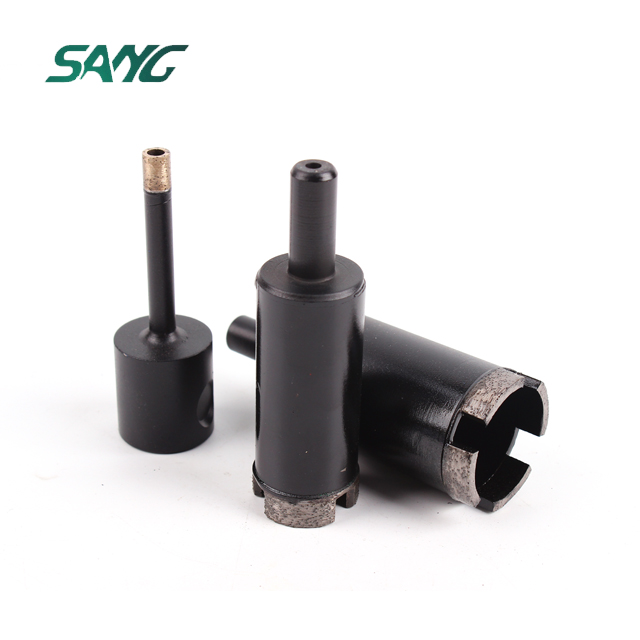

Diameter:35mm,40mm,etc Type of thread: 5/8"-11; M14; Gas 1/2,etc. For drilling granite,sandstone, basalt,etc. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment.
