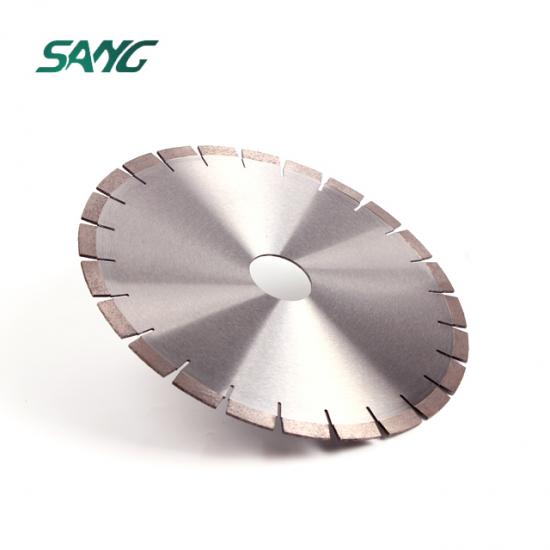

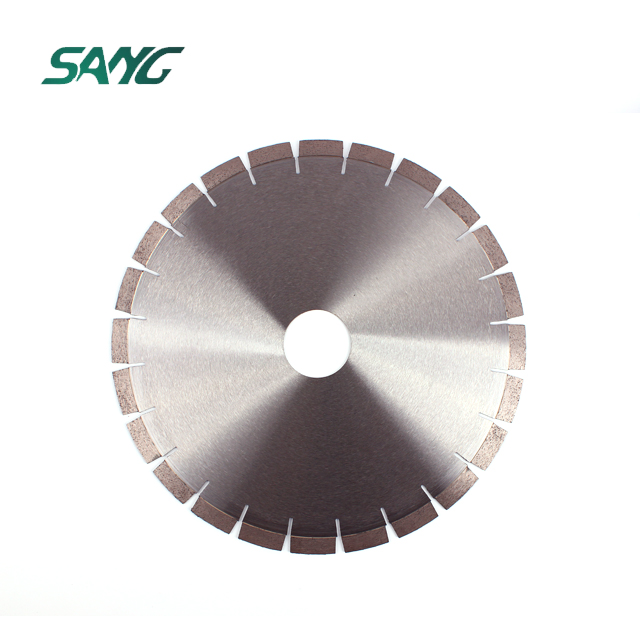

Diamond Saw Blades for Granite

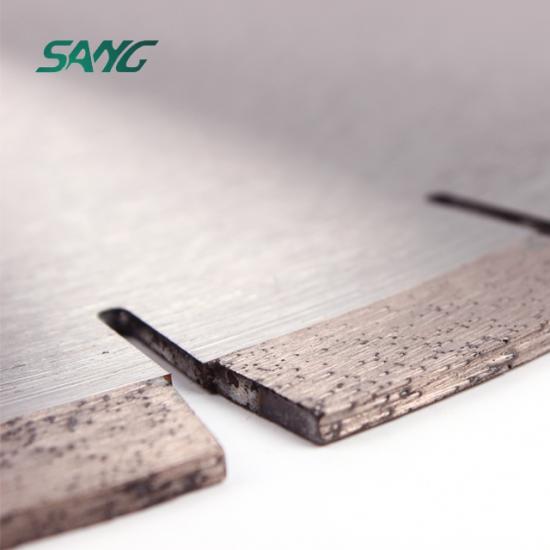

High sharpness, smooth cut, hard alloy steel as matrix, segmented teeth design, easy piercing, quick cutting.

The saw blade has a hole design, which can effectively dissipate heat, reduce noise and work efficiently.

The diamond blade makes the cutting surface very neat and the edges do not bulge.

More sizes for your reference:

D(mm)	Core Thick(mm)	Segment Size(mm)	Segment No.
300/350	2.0/2.2/2.4	40*3.0*10	22/25
400	2.6/2.8	40*3.4*10/12	28
500	3.0	40*4.2*10/12	36
600	3.6	40*4.8*10/12	42
700	4.0	40*5.2*10/12	46
800	4.5	40*6.0*10/12	46



D(mm)	Core Thick(mm)	Segment Size(mm)	Segment No.
900	5.0	24*7.0/6.0*12(15)	64
1000	5.5	24*7.6/6.4*12(15)	70
1200	5.5/6.0	24*8.0/7.4*12(15)	80
1300	6.0	24*8.4/7.8*12(15)	88
1600	7.2	24*9.0/8.4*12(15)	108
1800	7.2/8.0	24*9.8/9.2*12(15)	120
2000	8.0	24*10.5/9.5*12(15)	128
2200	8.5/9.0	24*11.5/10.5*12(15)	132
2500	8.5/9.0	24*12.5/11.5*12(15)	140
3000	11.0/10.0	24*13.5/12.5*12(15)	160
3500	11.0	24*14.5/13.5*12(15)	180



customized specification is available.
