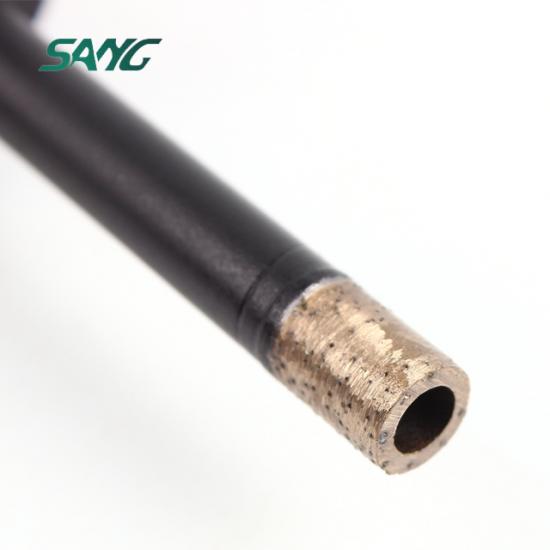

10mm diamond core bit for stone
Universal wet drilling core bits are used for drilling machines. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment. Type of thread: Straight shank; 5/8"-11; M14; UNC 1 1/4"-7; Gas 1/2; 3/4"-6.
Brand:
SANGPayment:
100% TT advancePrice:
$12Price range:
100 - 200/$10Product origin:
Quanzhou Fujian ChinaShipping port:
Xiamen portLead Time:
10 days after receiving paymentMOQ:
10
|
DIAMOND CORE BIT （31） |
||||||
| Specifications of Product: | ||||||
| ◆Universal wet drilling core bits are used for drilling machines. | ||||||
| ◆Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment. | ||||||
| ◆Type of thread: Straight shank; 5/8"-11; M14; UNC 1 1/4"-7; Gas 1/2; 3/4"-6. | ||||||

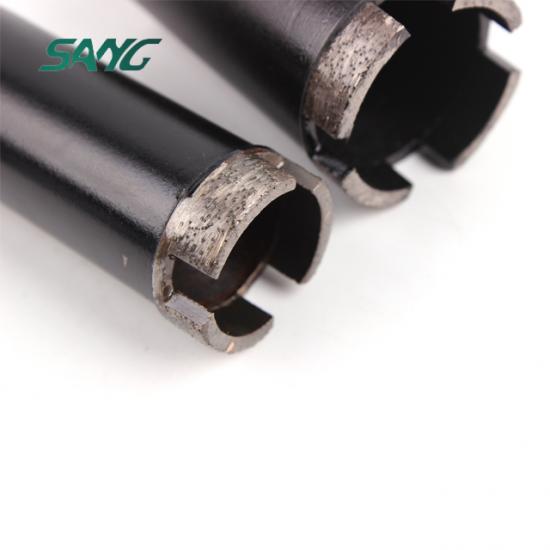

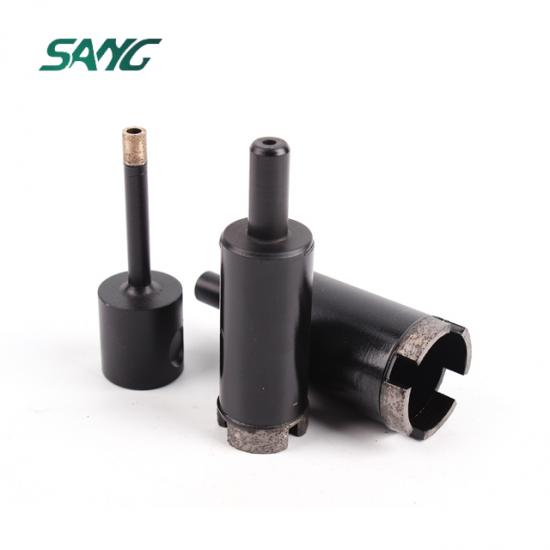

| DIAMOND CORE BITS FOR STONE | ||||||
| ◆For drilling granite, sandstone, basalt, gabbro, marlbe, travertine. | ||||||
| Item No. |
Diameter (mm) |
Working Length (mm) |
Segment Dimension (mm) | |||
| L | W | H | Quantity | |||
| SGCB-T6 | 6 | 30, 50 | column | 10 | 1 | |
| SGCB-T8 | 8 | 60 | column | 10 | 1 | |
| SGCB-T10 | 10 | 60 | column | 10 | 1 | |
| SGCB-T12 | 12 | 60 | column | 10 | 1 | |
| SGCB-T14 | 14 | 60 | column | 10 | 1 | |
| SGCB-T16 | 16 | 60 | column | 10 | 1 | |
| SGCB-T18 | 18 | 60 | column | 10 | 1 | |
| SGCD-R20 | 20 |
75 / 100 / 150 / 200 / 400 |
ring | 3.0 | 10 | 1 |
| SGCD-R26 | 26 | ring | 3.0 | 10 | 1 | |
| SGCD-R32 | 32 | ring | 3.0 | 10 | 1 | |
| SGCD-R36 | 36 | ring | 3.0 | 10 | 1 | |
| SGCD-S42 | 42 | 23/19.7 | 3.0 | 10 | 4 | |
| SGCD-S52 | 52 | 23/20 | 3.5 | 10 | 5 | |
| SGCD-S62 | 62 | 24 | 3.5 | 10 | 5 | |
| SGCD-S82 | 82 | 24 | 4.0 | 10 | 7 | |
| SGCD-S102 | 102 | 24 | 4.0 | 10 | 9 | |
| SGCD-S112 | 112 | 24 | 4.0 | 10 | 9 | |
| SGCD-S132 | 132 | 24 | 4.0 | 10 | 10 | |
| SGCD-S152 | 152 | 24 | 4.0 | 10 | 12 | |
| SGCD-S178 | 178 | 24 | 4.5 | 10 | 13 | |
Kobe Kang
Mob/Whatsapp/Wechat:0086-13808521603
E-mail: sangdiam@sangtools.com
FAQ
1.Are you a manufacturer or trading company?
We are a 26 years manufacturer.
2.How to prove your quality?

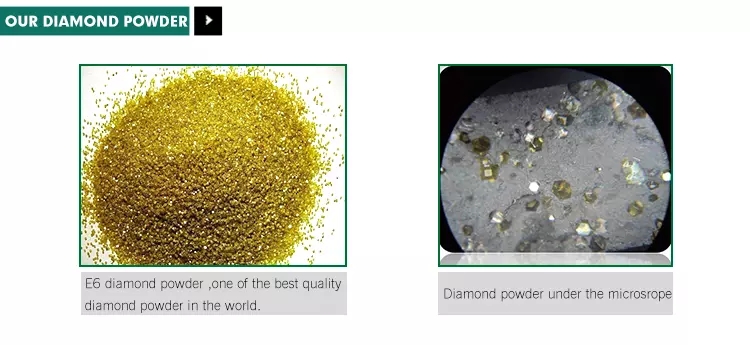

We use E6 diamond,Dipea steel wire, passed ISO9001 and SGS, strict quality control and skilled workers.
3.What should I do if the products is not suitable for the market?
Giving us the detailed report first,then we analyze the reason,try to find the solutions.
If it is our problems,we will give you new products.
4.Do you provide free samples?
Small sample is welcomed.But,usually we don't provide free samples.
5.Can you provide OEM/OEM services?
It is ok.
6.Any question about diamond abrasive disc single row cup wheel for polishing stone, please kindly let me know! Thanks!
Universal wet drilling core bits are used for drilling machines. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment. Type of thread: Straight shank; 5/8"-11; M14; UNC 1 1/4"-7; Gas 1/2; 3/4"-6.
SANG diamond drill bit used for drilling reinforced concrete, asphalt, brick and air-cured refractories.
Universal wet drilling core bits are used for drilling machines. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment. Type of thread: Straight shank; 5/8"-11; M14; UNC 1 1/4"-7; Gas 1/2; 3/4"-6.
For drilling reinforced concrete, asphalt, brick and air-cured refractories. Universal wet drilling core bits are used for drilling machines. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment. Type of thread: Straight shank; 5/8"-11; M14; UNC 1 1/4"-7; Gas 1/2; 3/4"-6.
Diameter:35mm,40mm,etc Type of thread: 5/8"-11; M14; Gas 1/2,etc. For drilling granite,sandstone, basalt,etc. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment.
WET DRILLING CORE BIT connection: G1/2",5/8"-11, Straight shank etc Size: D6mm-600mm Package details: diamond tools for cnc,carton,box Working length: 50mm-450mm segment height: 8/10mm Use:Masonry Drilling
